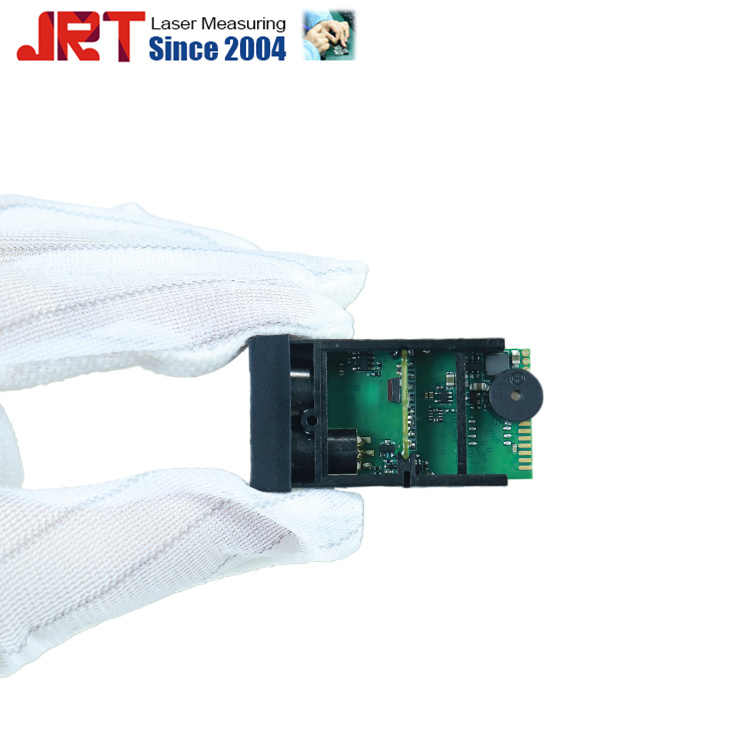

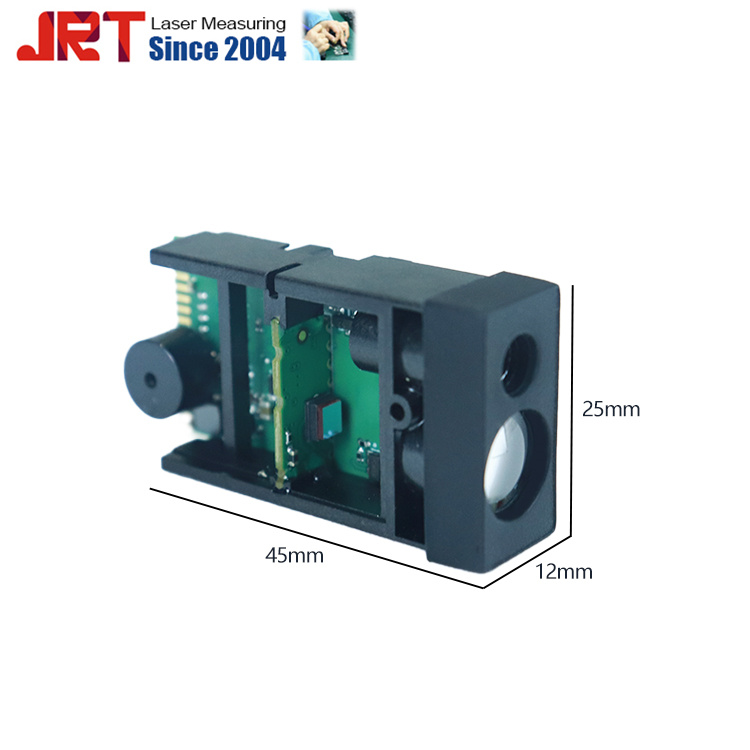

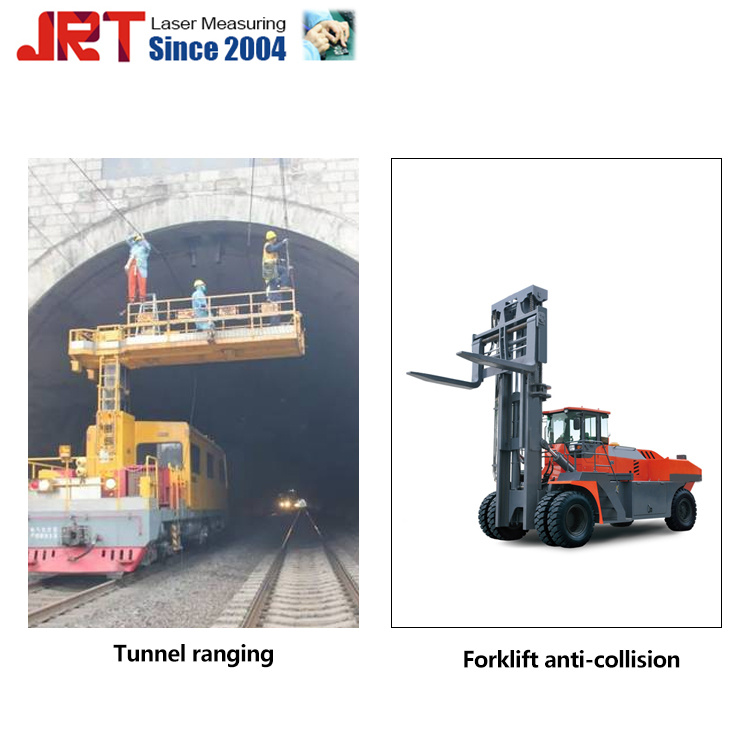

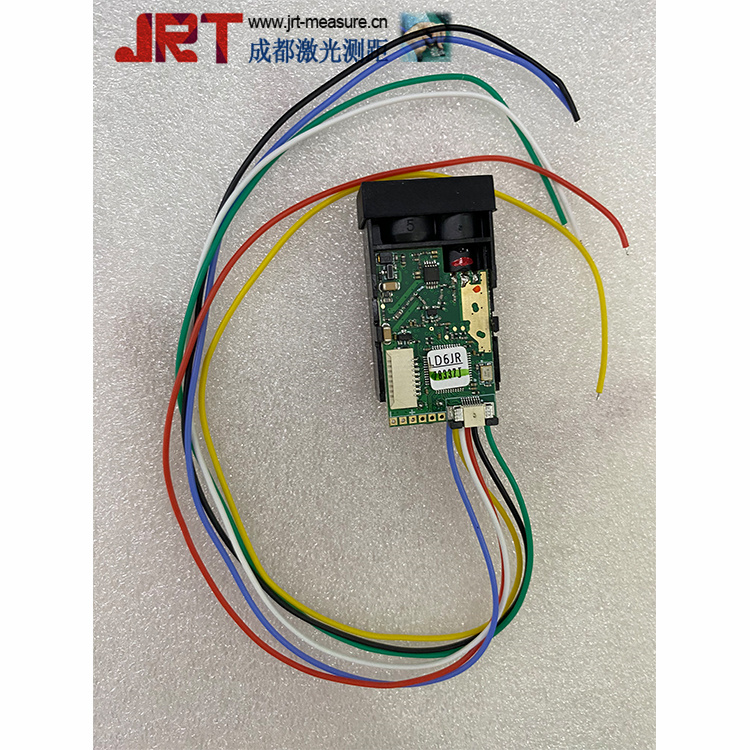

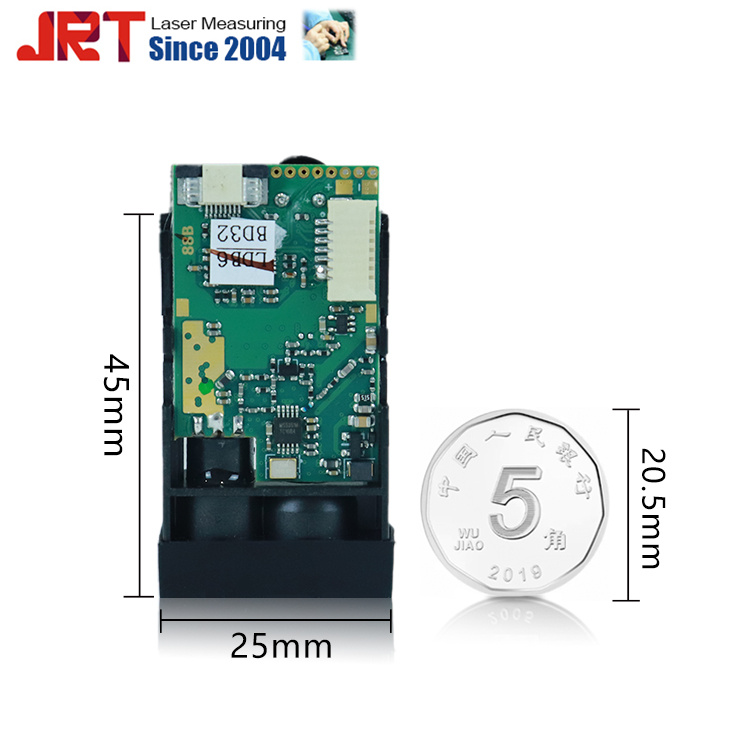

20Hz LiDAR Range Sensor UART 40m The MB2D-20Hz is a phase measurement single-point LiDAR range sensor. The LiDAR module can measure distances up to 80m, with high frequency up to 20 hertz, and accuracy ±1mm. It can be widely used in the fields of unmanned driving, education industry, sports long jump test project, sitting posture correction, intelligent transportation, etc. Technical Parameters: Range: 0.03-40m Invisible measuring: 620nm-690nm Measuring accuracy: +-1 mm Measuring frequency: Up to 20Hz Laser type: Class 2, red Interface options: Serial/usb/rs232/rs485/bluetooth Size: 45*25*12mm Voltage: DC2.0~3.3V Electrical Level: TTL/CMOS Working temperature: 0 ~ 40 degree Storage temperature: -25 ~ 60 degree More Detailed Pictures With USB port design, customers can use to connect with your arduino, Raspberry Pi, MCU,IPC etc. This laser sensor is really a tiny range sensor with 45*25*12mm, which can be easily integrated to you device. Applications…
