40m Connector CMOS Laser Distance Sensors

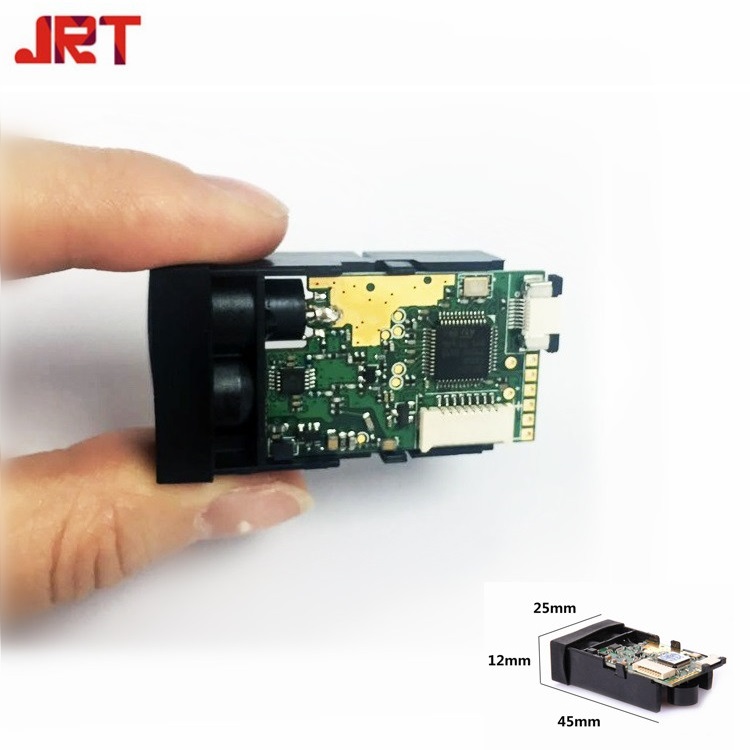

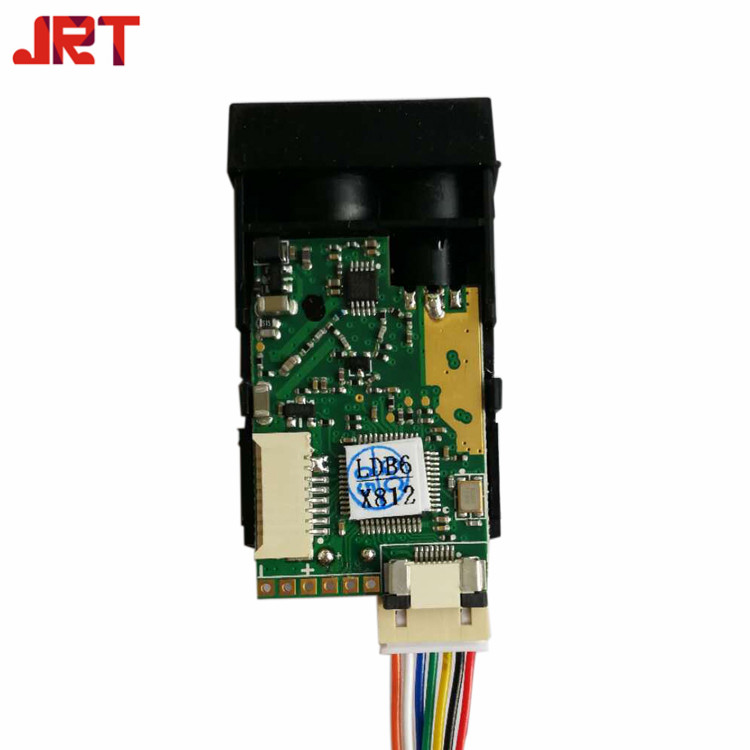

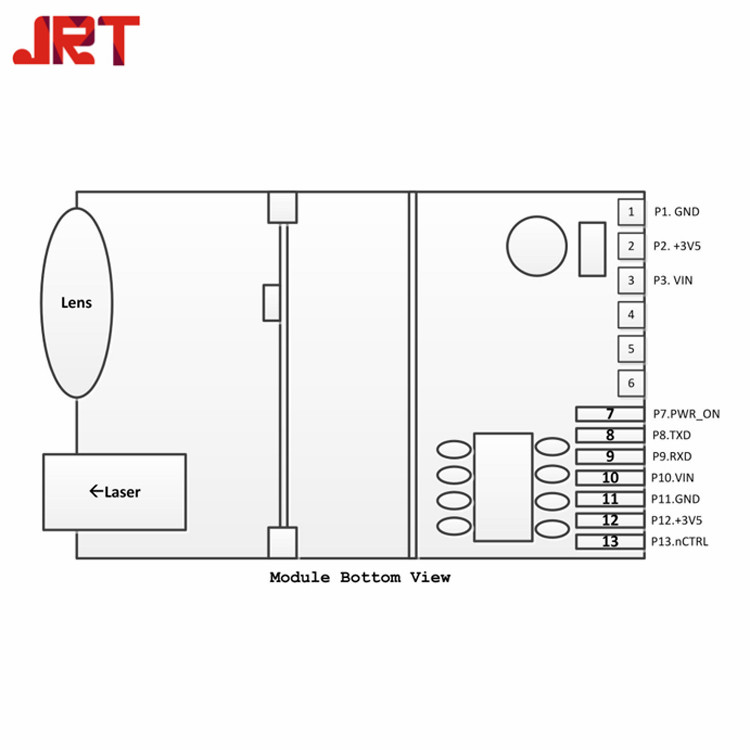

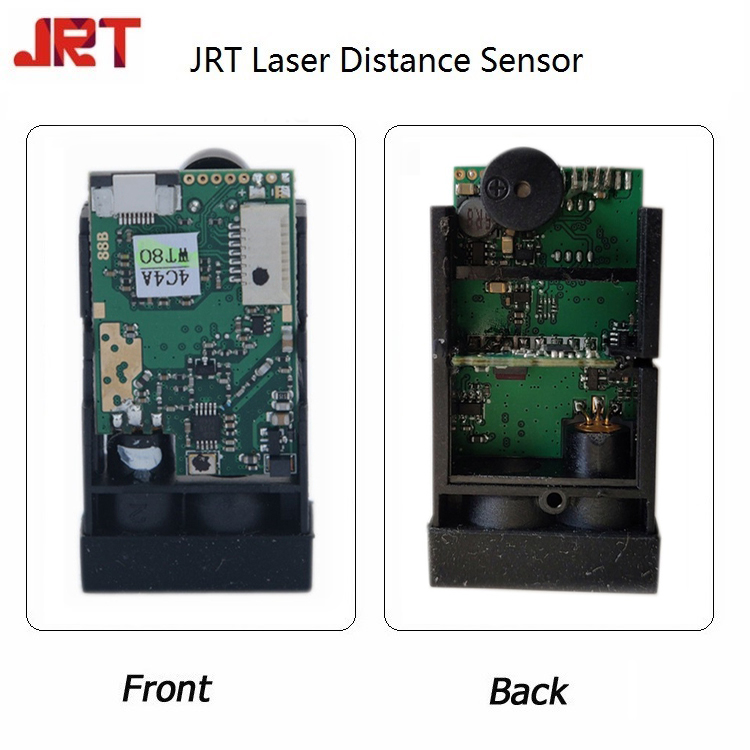

40m Connector CMOS Laser Distance Sensors As a non-contact distance measurements sensors, jrt laser distance sensor has high repeatability and high accuracy with +-1 millimeter. The compact design of 45*25*12mm size, customers usually used for indoor and outdoor area. Also, it's really convenient using the connector & wires, if you need oter Custom and OEM service, contact now!  Hardware Connections  1. Hardware Interface: 2 line USART(Rx, Tx);  2. Baudrate: 19200bps;  3. Data bits: 8b;  4. Parity: none;  5. Flow control: none. Detailed Pictures CMOS Laser Distance Sensors Front Back CMOS Laser Distance Sensors Len CMOS Laser Distance Sensors Diagram Technical Feature: Range: 0.03-40 meters Invisible measuring: 620-690nm Measuring accuracy: +-1 mm Measuring frequency: Up to 3 Hz/ 8hz Laser type: Class 2, red Interface options: Serial/usb/rs232/rs485/bluetooth Size: 45*25*12mm Working temperature:…
