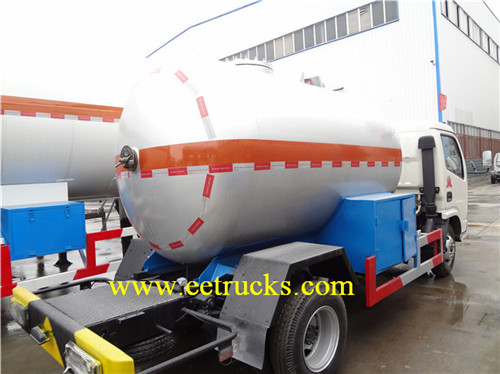

8 CBM 4 MT LPG Delivery Trucks

We have manufactured 8 CBM LPG Delivery Trucks with advanced thchnology and abundant experience for years, it is designed according to ASME pressure vessel code, The LPG Delivery Trucks tank materials are suitable to the grade of LPG that will be contained and the operation range of temperature and pressure anticipated. Design standard: 1. GB150-2011《Pressure Vessel》 2. GB/T19905-2005《Liquefied Gas Tanker Truck》 Chassis Parameter Chassis Type: EQ1110GLJ Curb weight: 7100 kg Loading Weight: 3360 kg Total Weight: 10460 kg Front/Rear Overhang: 1250/1900 mm Tire Size: 9.00-20 Nylon Tire External Dimensions(Length*Width*Height): 7100*2230*2810 mm Maximum Speed: 90 km/h Tank Parameter Design Pressure: 1.61 MPa Filling Coefficient: 420 kg/m3 Host Material: Q345R Design Thickness of Cylinder: 7.99 mm Design Thickness of Head: 7.98 mm Head Shape: ellipse Diameter*Thickness*Length: 1600*8*4270 mm Working Thermometer:-20℃~50℃ Heat Treatment: 620 ℃ annealing Safety…
