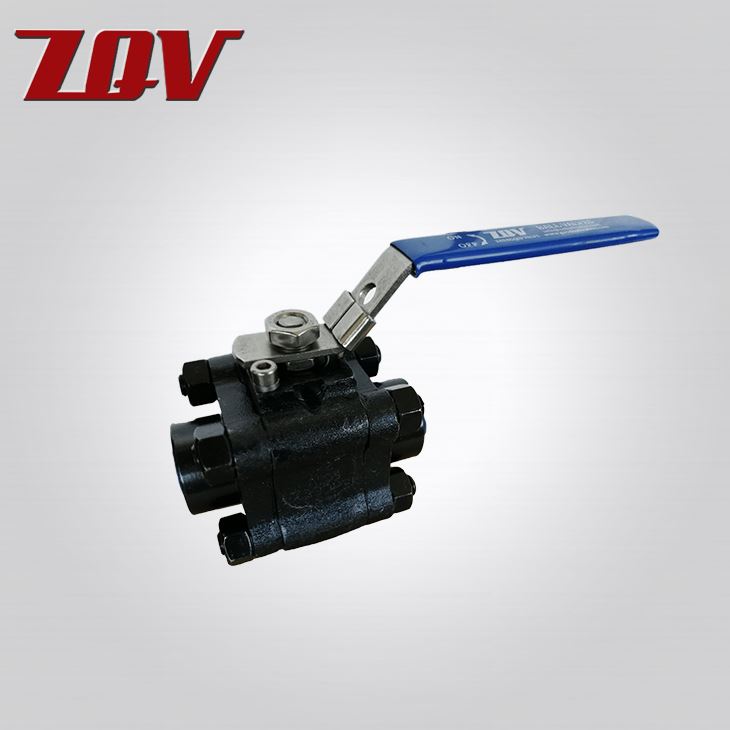

ZQV Three-Piece Carbon Steel Ball Valve, a forged steel Two Way Floating Ball valves, quarter-turn valves category, is available as Regular Reduced Port and Full Port, threaded end connection in the size range of DN15 TO DN50, Pressure rate in ASME Class800, Class 1500. This 3PC high-pressure ball valve design of enclosed internal bolt and heavy-duty body, make more durable under high-pressure working condition. Locking Device is included for all sizes, also ISO 5211 MOUNTING PAD is available. 3PC ball valves is a good choice when the ball valves need to be welded on the pipeline, so the end include Threaded NPT end, socked weld end, Butt weld end.Character:Lock Device Optiondirect mounting pad/integral mounting padAnti-blow out stemInternally boltAnti Fire optionIntegral ISO5211 directing mount padMaterial Option: A105, LF2, F316, F304, F316L, F304L,Standard Material specificationsSize:1/4''-2''Threaded END/Socket weld endPressure rate: ASME CLASS800, CLASS1500, CLASS2500 (PN63-PN420)…
