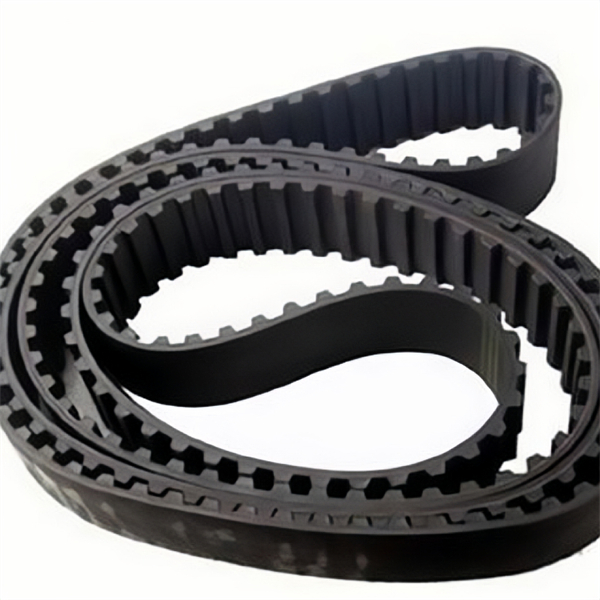

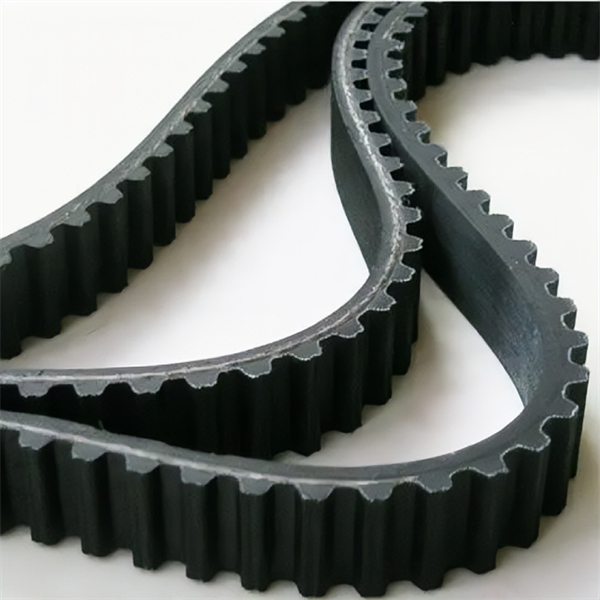

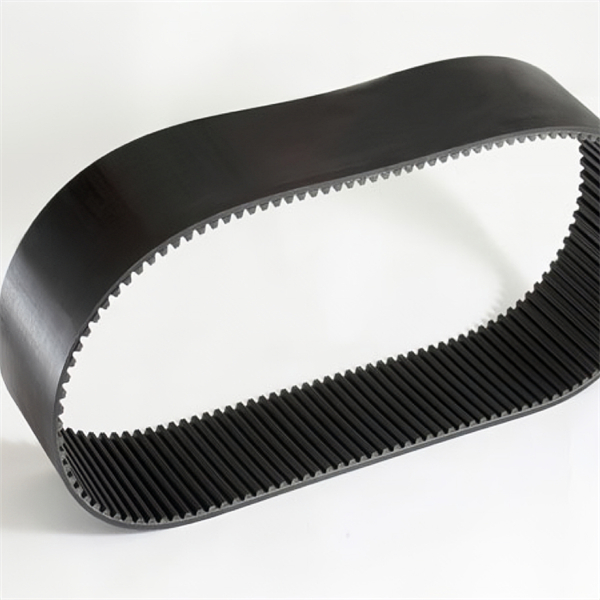

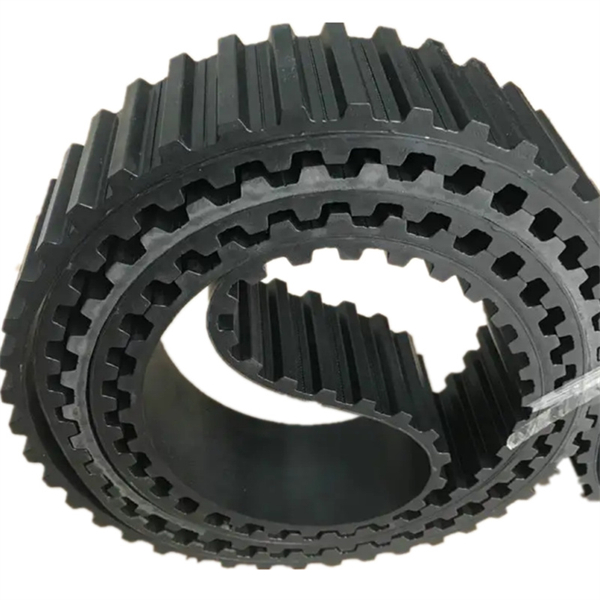

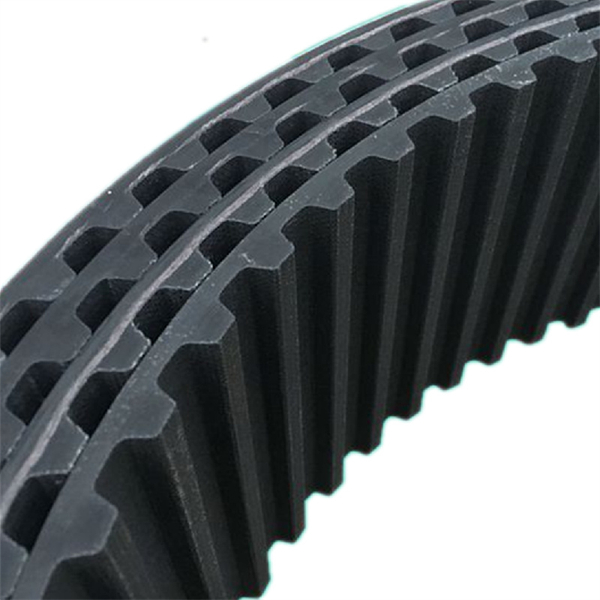

Rubber Trapezoidal Timing Belt with Seamless Fiber Core

Rubber Trapezoidal Timing Belt with Seamless Fiber Core Description:The trapezoidal timing teeth belt determines the belt pulley pitch based on the imperial system (inches), which is divided into straight-edge tooth profile and involute tooth profile. Among them, the straight-edge tooth profile is more common. In addition to the advantages of the general trapezoidal timing belt transmission, the trapezoidal teeth timing belt has a trapezoidal tooth shape. Compared with the arc teeth timing belt, it can allow a larger linear speed. In other words, the trapezoidal teeth timing belt can meet the requirements of a larger speed. High speed transmission. Commonly used models include MXL, XL, L, H, XH, and XXH.Specifications: Model Pitch(mm) Tooth height(mm) Belt thickness(mm) Angle MXL 2.032 0.51 1.14 40 XL 5.08 1.27 2.3 40 L 9.525 1.91 3.6 40 H 12.7 2.29 4.3 40 XH 22.225 6.35 11.2 40 XXH 31.75 9.53 15.7 40 Features: The belt teeth are constructed from a reinforced neopren…
