Thermopile Laser Power Meter for 5W

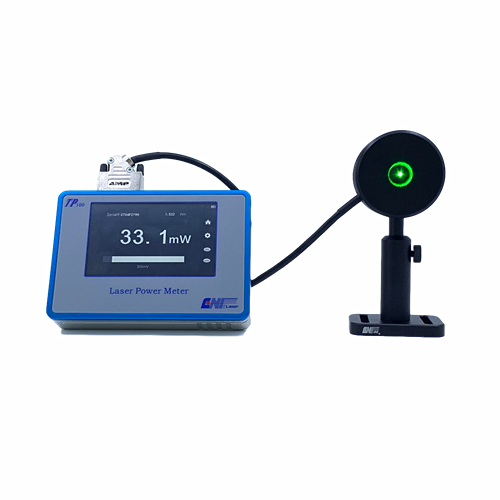

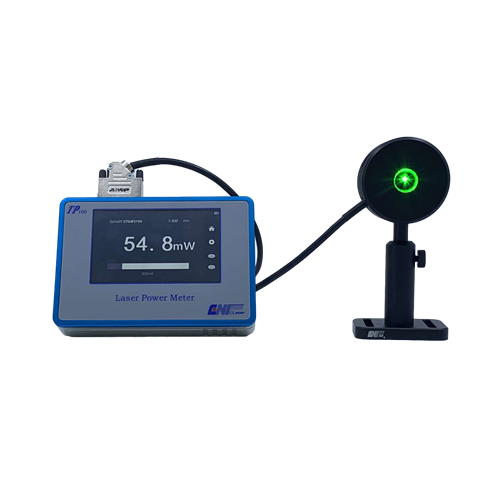

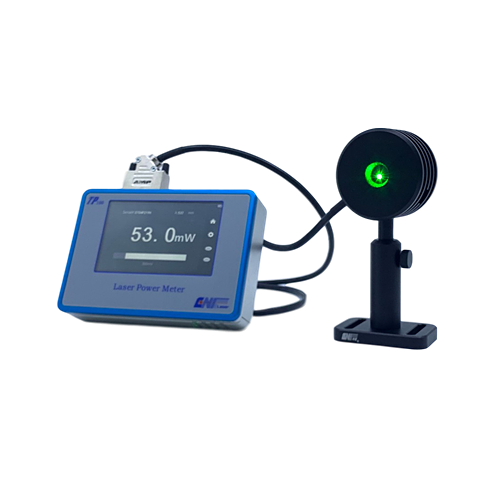

5mW-5W high precision thermopile laser power meter is made features of very low noise and drift optical thermal power meters accurately measure very low laser and LED powers over a wide wavelength range of 0.19-20um. CNI developed thermopile laser power meter, it is composed of TP100 header and TS/ HS series probe. This power meter can accurately measure various laser power, it is equipped with PC software to store measured data and portable built-in rechargeable battery, which is easy to operate. Thermal sensors have a series of bimetallic junctions called a thermopile. Radial or axial heat flow through the sensor creates a voltage proportional to the power absorbed as it flows through the thermopile. The reading is not dependent on the ambient temperature since only the temperature difference is measured and not the absolute temperature.  11Features: Wavelength range: 0.19 -25µm…
