Ultraosnic vibration transducer parts 400KHz

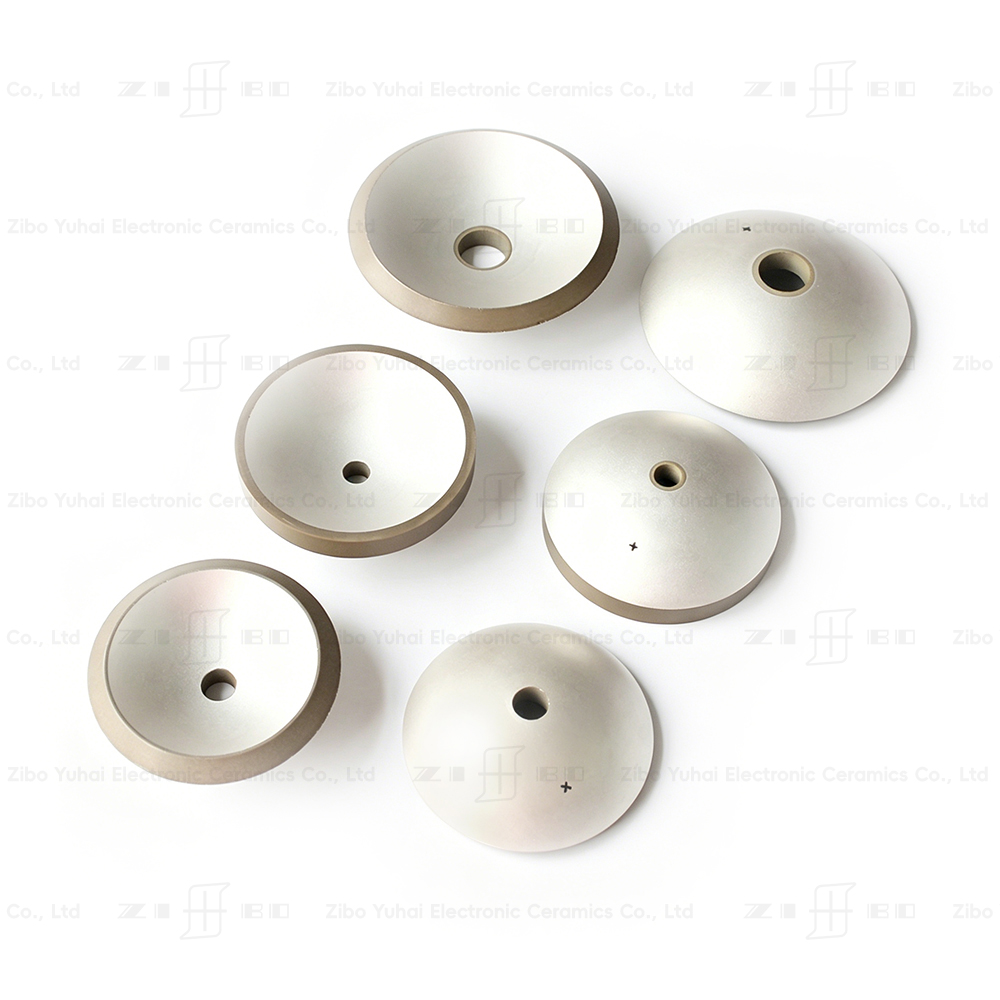

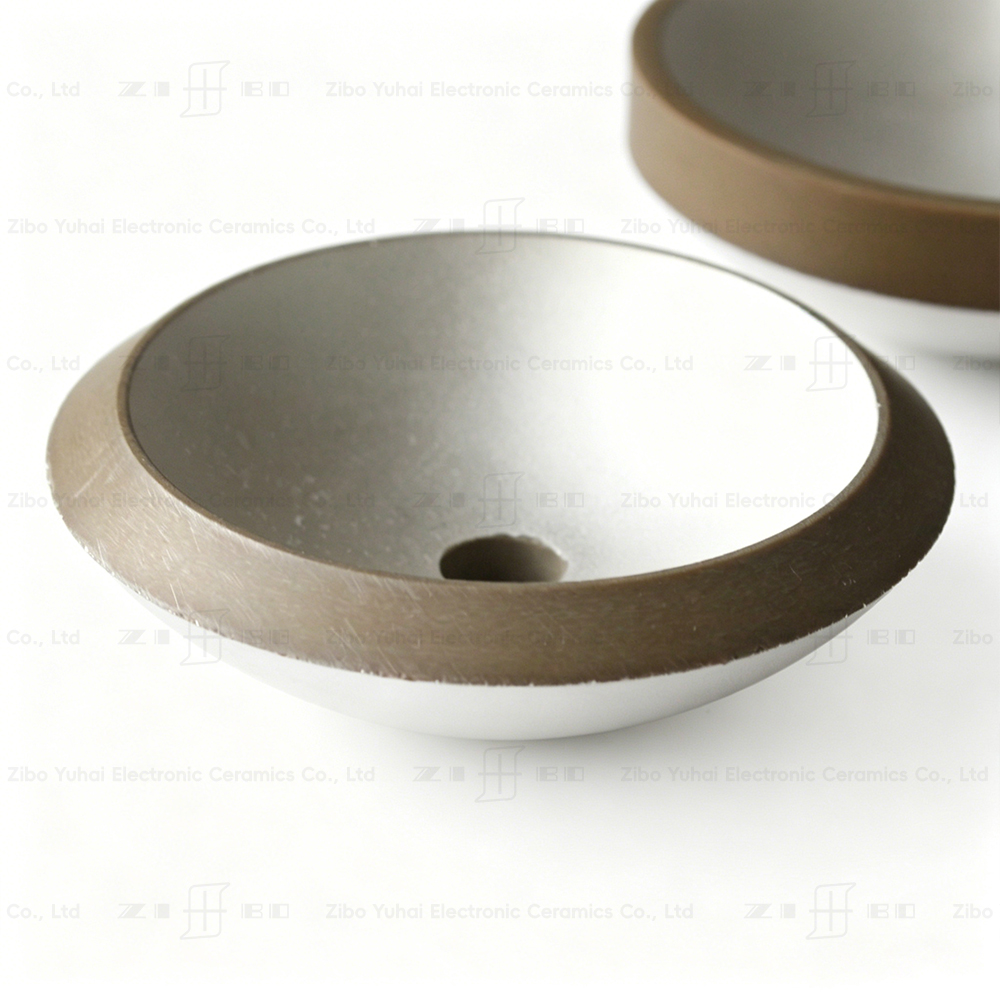

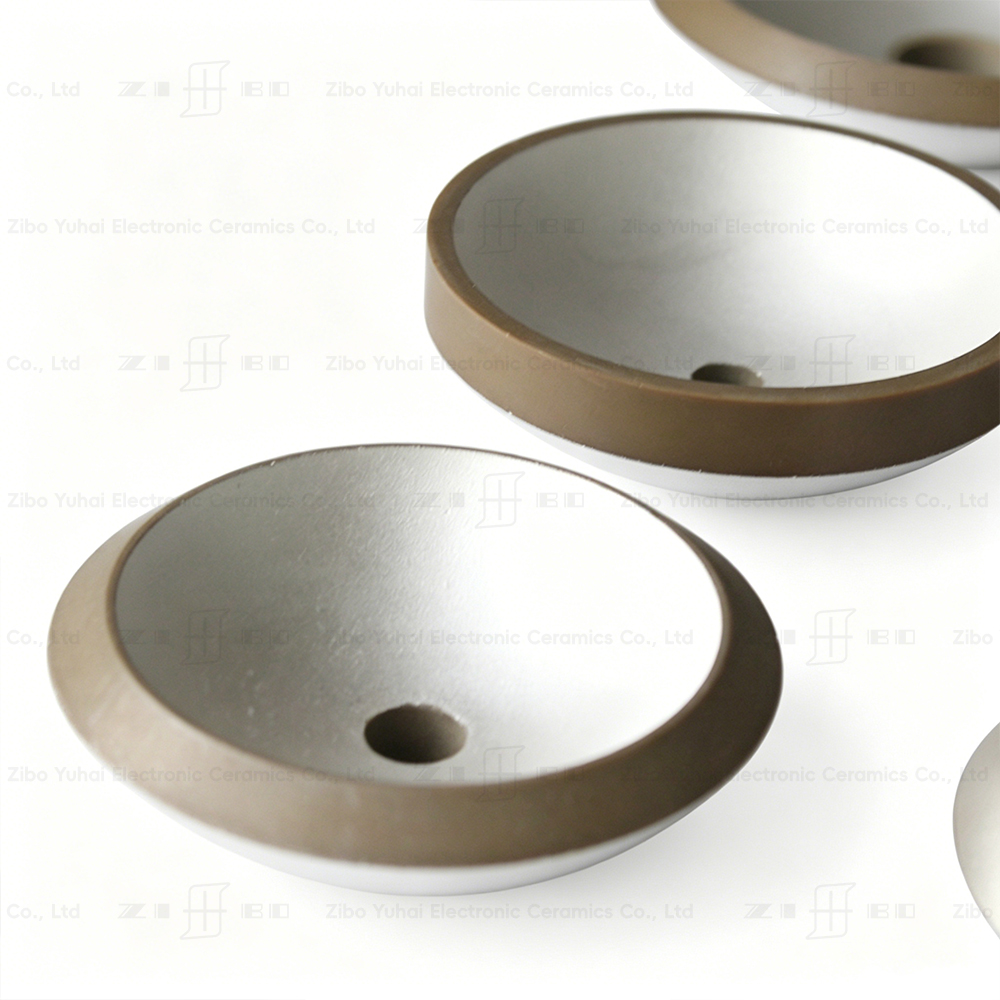

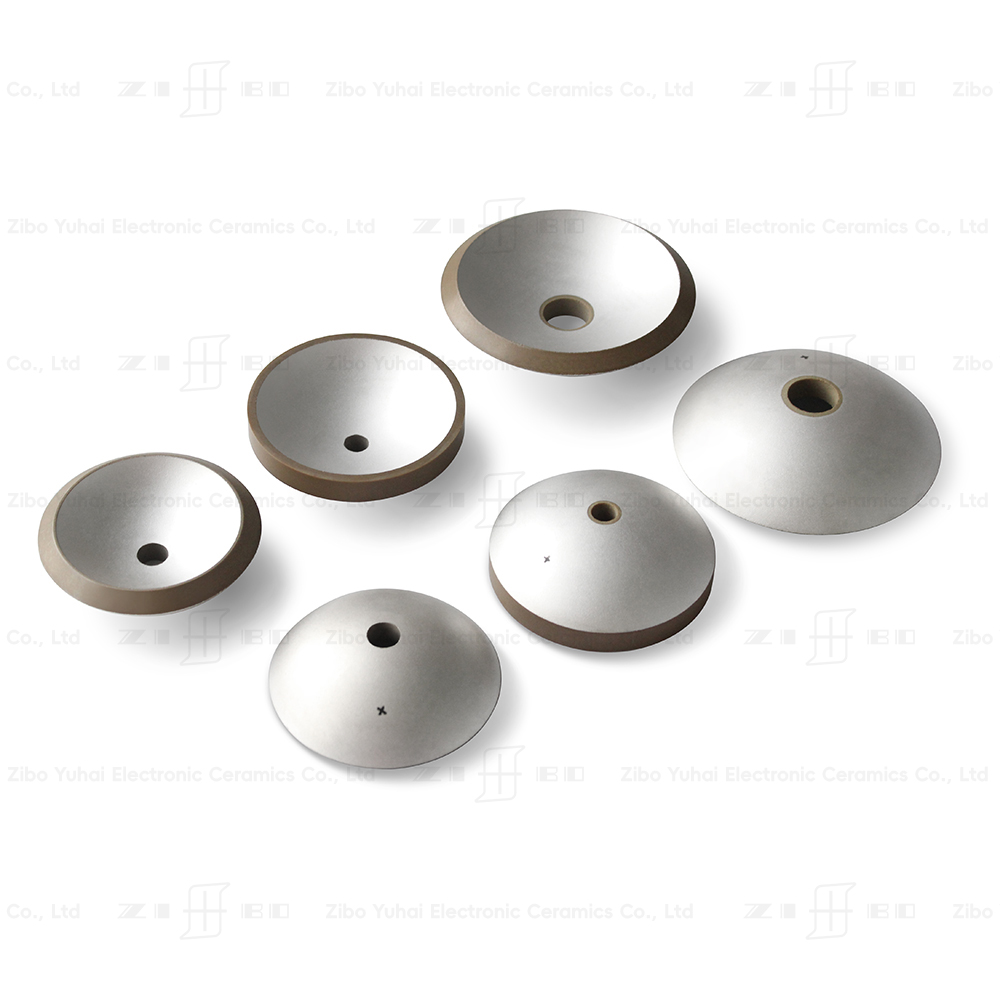

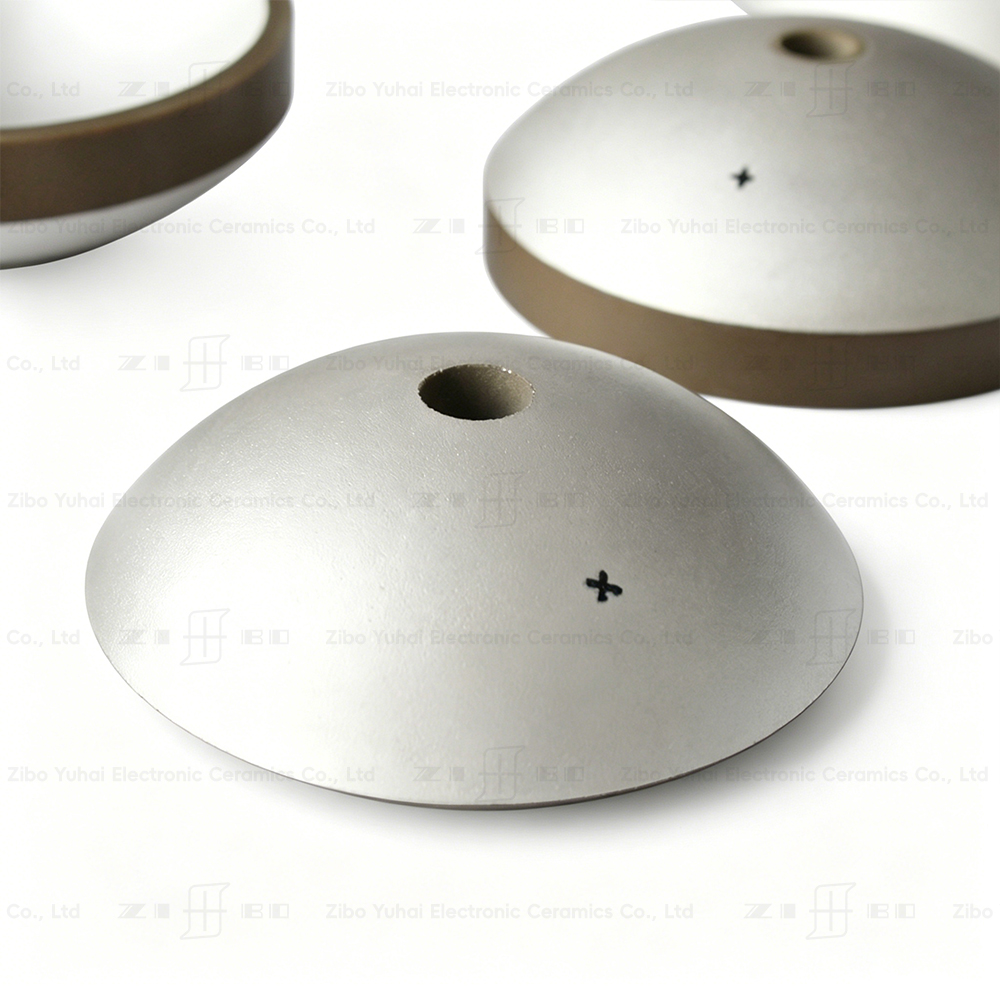

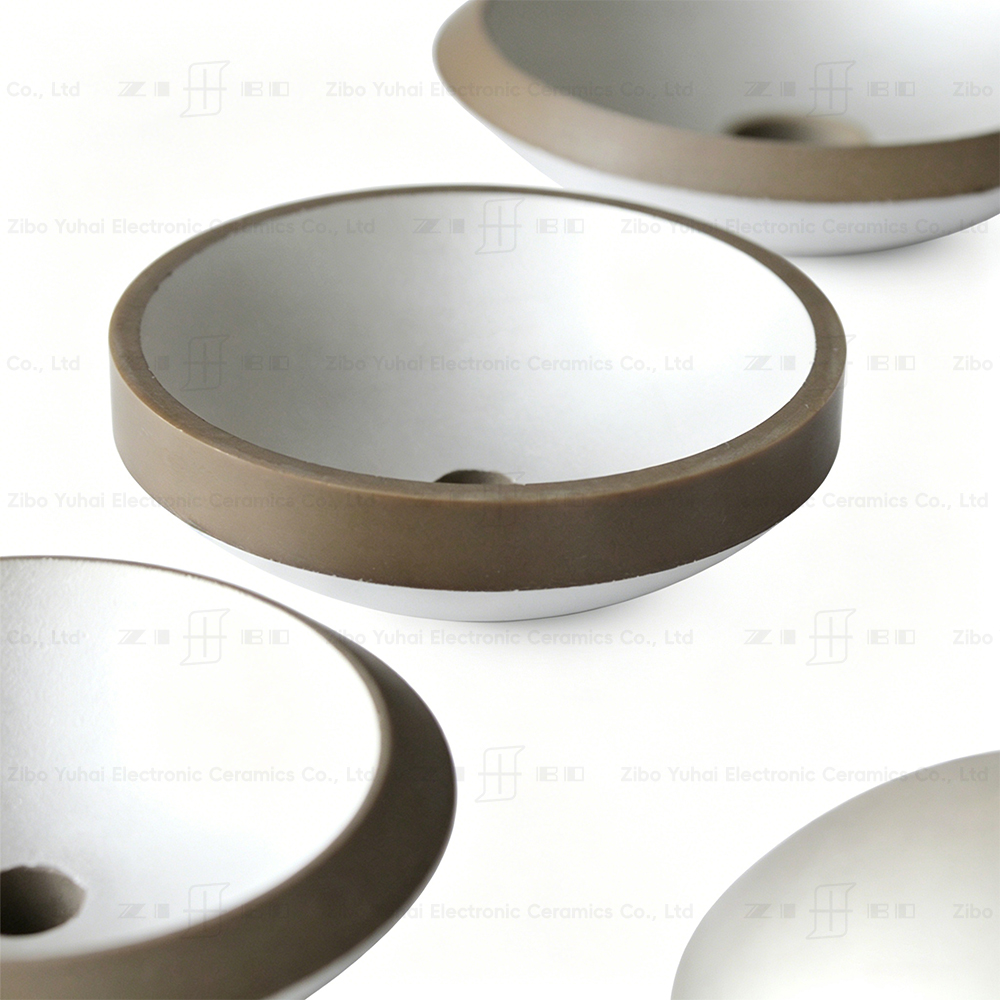

Piezoelectric ceramic hemisphere   Electrode direction: thickness direction Yuhai company developped ultrasonic hemisphere elements and custom HIFU part sizes, this range is fabricated from more than 10 available piezoelectric material formulations according to high sensitive, temperatures etc applications.  Applications includes:  high powder piezo ultrasonic transducer Features :  Sizes from 6mm up to 160mm Thickness from 1mm up to 10mm Choice of metallisation (Silver, Nickel, Gold and others on request) Wide choice of PZT formulations Applications:  High Intensity Focused Ultrasound, high power ultrasonic transducer Material:  PZT-82( hard PZT P-8) Technical data: Dimensions:  diameter 90mm, thickness according to frequency 400KHz Thickness Frequency Ft: 400KHz ± 5% Radial Frequ…
