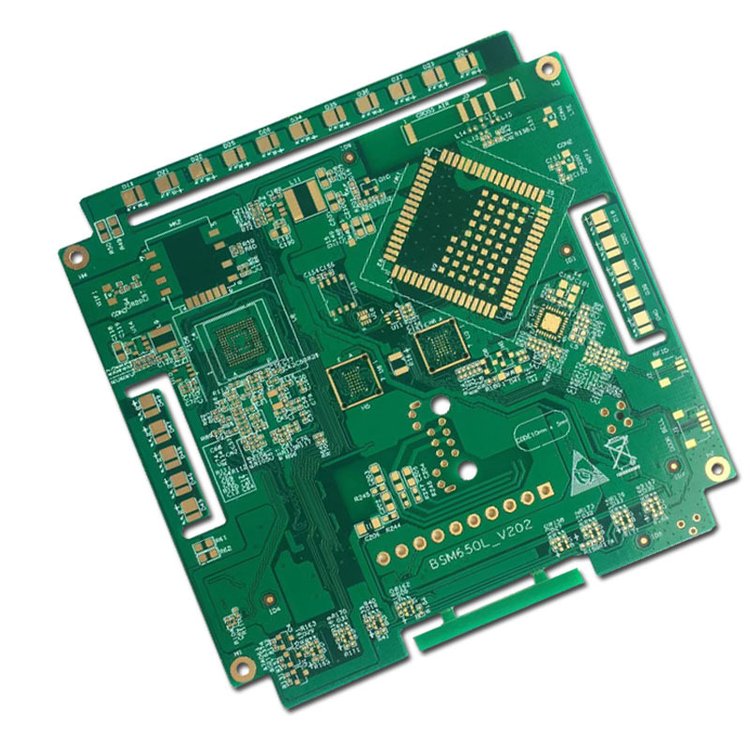

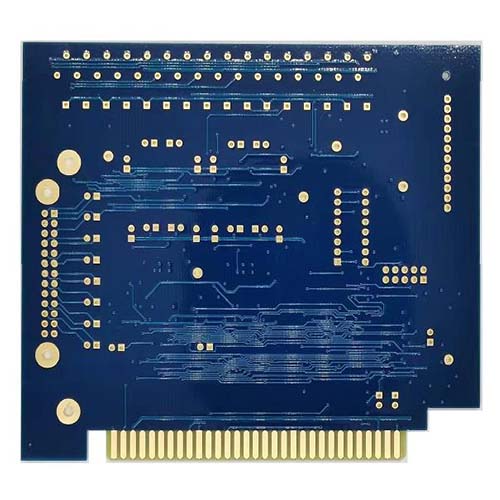

FPGA High-Speed PCB Model: FPGA high-speed circuit board Material: TG180 Layer: 10Layers Finished Thickness: 1.6mm Copper Thickness: Inner/outer 1OZ Color: Blue/White Min Trace/Space: 4mil/4mil Surfacet Treatment: Hard Gold 5U Application: FPGA high-speed PCB Product Details What is a high-speed circuit? It is generally believed that if the frequency of a digital logic circuit reaches or exceeds 45MHZ~50MHZ, and the circuit working above this frequency has already accounted for a certain share of the entire electronic system (for example, 1/3), it is called a high-speed circuit. In fact, the harmonic frequency of the signal edge is higher than the frequency of the signal itself. It is the rising and falling edges of the signal (or signal jumps) that cause unexpected results in signal transmission. Therefore, it is generally agreed that if the line propagation delay is greater than 1/2 of the rise time of the digital signal driving end, such signals are considered to be high-speed signa…
