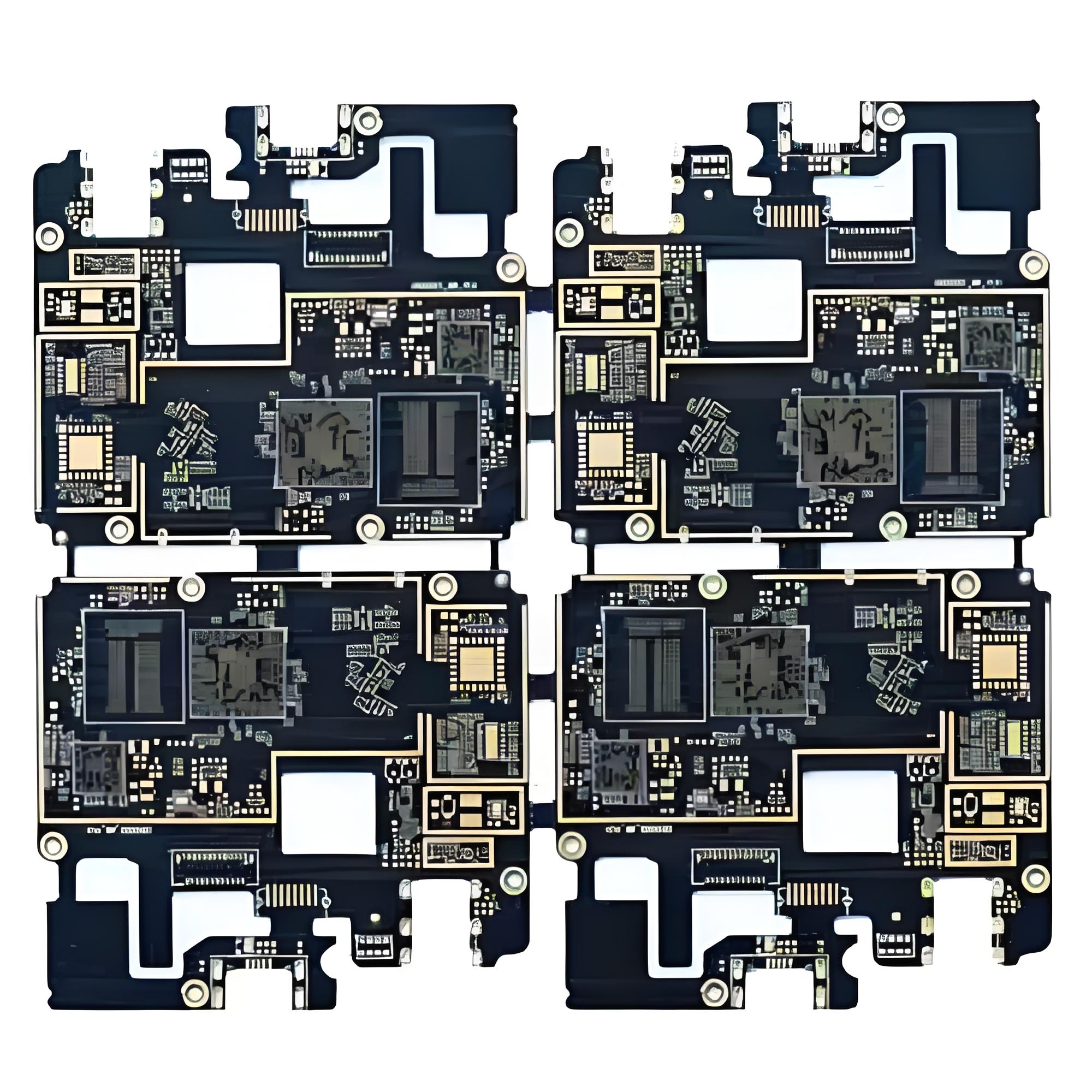

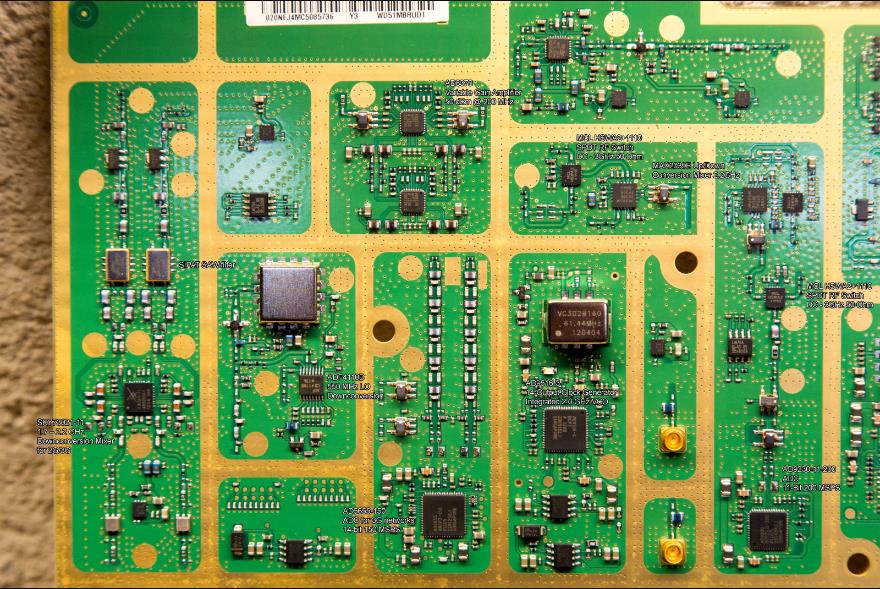

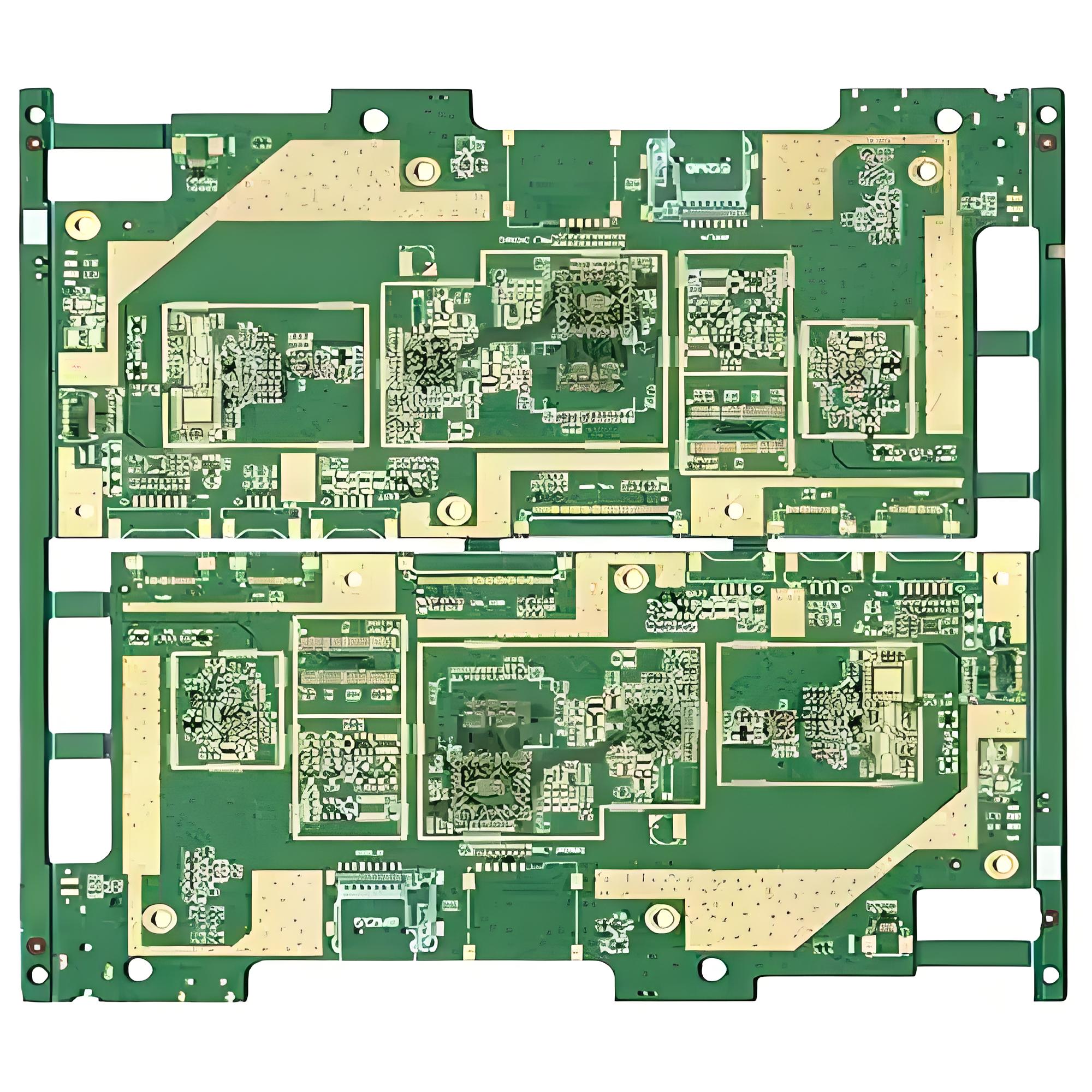

High Frequency Embedded Copper PCB Model : High Frequency Embedded Copper PCB Dielectric constant : 3.38 Structure : Rogres RO4003C+4450f Layer : 4Layers pcb Finished Thickness : 1.6mm Dielectric Thickness :0.508mm Material CoThickness :½(18μm)HH/HH Finished Co Thickness : 1/0.5/0.5/1(OZ) SurfaceTreatment :Immersion Glod Special process :High frequency embedded copper pcb Application : Communication equipment pcb Product Details Introduction to Embedded Copper Plate As high frequency RF (radio frequency) and PA (power amplifier) and other high-power electronic components have higher requirements for PCB heat dissipation capacity, the industry began to introduce the manufacturing process of embedding copper block in PCB, which is called embedded copper plate. At the same time, in order to save the material cost of high-frequency materials, only the RF circuit part is designed to be mixed with high-frequency materials. At present, most of the products are combined with the…
