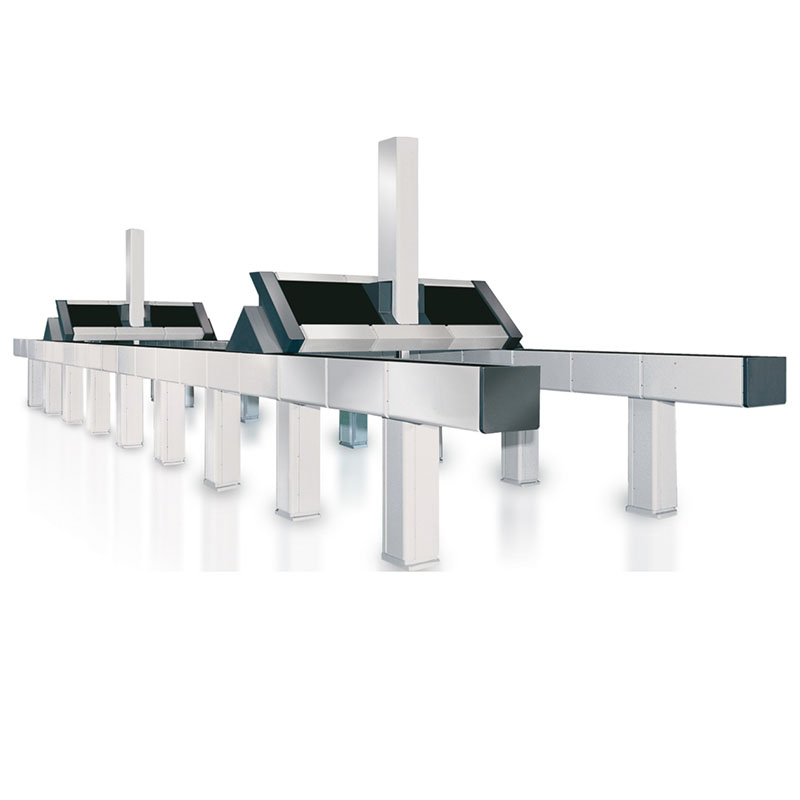

Ultra Large Gantry Coordinate Measuring Machine

The LAMBDA SP can be equipped with multiple trigger and scanning probes, as well as a high-performance continuous servo wrist HH-ACW-43MW, which, when paired with an ultra long extension rod, can measure various difficult to access features. Technical features 01 Longmen structure, suitable for inspection of large-sized components 02 Dual Drive, Dual Reading Head, Dual Grating, High Resolution Reading Head 03 High rigidity, large cross-section aluminum alloy Z-axis 04 Structural adaptive compensation for temperature effects on mechanical assemblies, workpieces, and grating scales - A.C.T.I.V 05 Sliding parts made of hard aluminum alloy material have smaller mass 06 Y-direction crossbeam adopts unique "inclined bridge technology" with high rigidity The 07 X/Z direction transmission system uses synchronous belts. The Y-axis adopts gear rack transmission, which can eliminate the reverse clearance in the transmission 08 All three axes are equipped with German Heidenhain gold-plated grat…
